USDT-IDR Market Monitor: A Demo
A high-fidelity monitoring terminal for the USDT/IDR pair, built for liquidity analysis and execution simulation across Indonesian exchanges. This project focuses on minimizing latency and maximizing the visibility of order book depth through a “Terminal-as-a-Service” UI.
1. Context & Business Case
Background: The Liquidity Challenge
In the Indonesian crypto ecosystem, the USDT/IDR pair serves as the foundational gateway for digital asset trading. For a Business Operations team, the “ticker price” is often a surface-level metric. The real operational challenge lies in Liquidity Depth.
When a market is “thin” (low density of orders in the book), even a moderate trade can cause the price to move unfavorably. This phenomenon, known as Slippage, directly increases the cost of doing business and negatively impacts user experience.
Case Study: The “Invisible” Cost of Execution
Imagine a scenario where a Business Operations Associate must execute a 100,000,000 IDR sell order to rebalance company liquidity:
- The Ticker Price: 16,971 IDR.
- The Problem: There isn’t enough immediate demand at 16,971 to fill the entire 100M IDR order.
- The Reality: To complete the sale, the order “walks” down the order book, filling at progressively lower prices.
- The Goal: This dashboard was built to predict this exact cost before the trade is executed, allowing for smarter, data-driven execution strategies.
2. What This Project Accomplishes

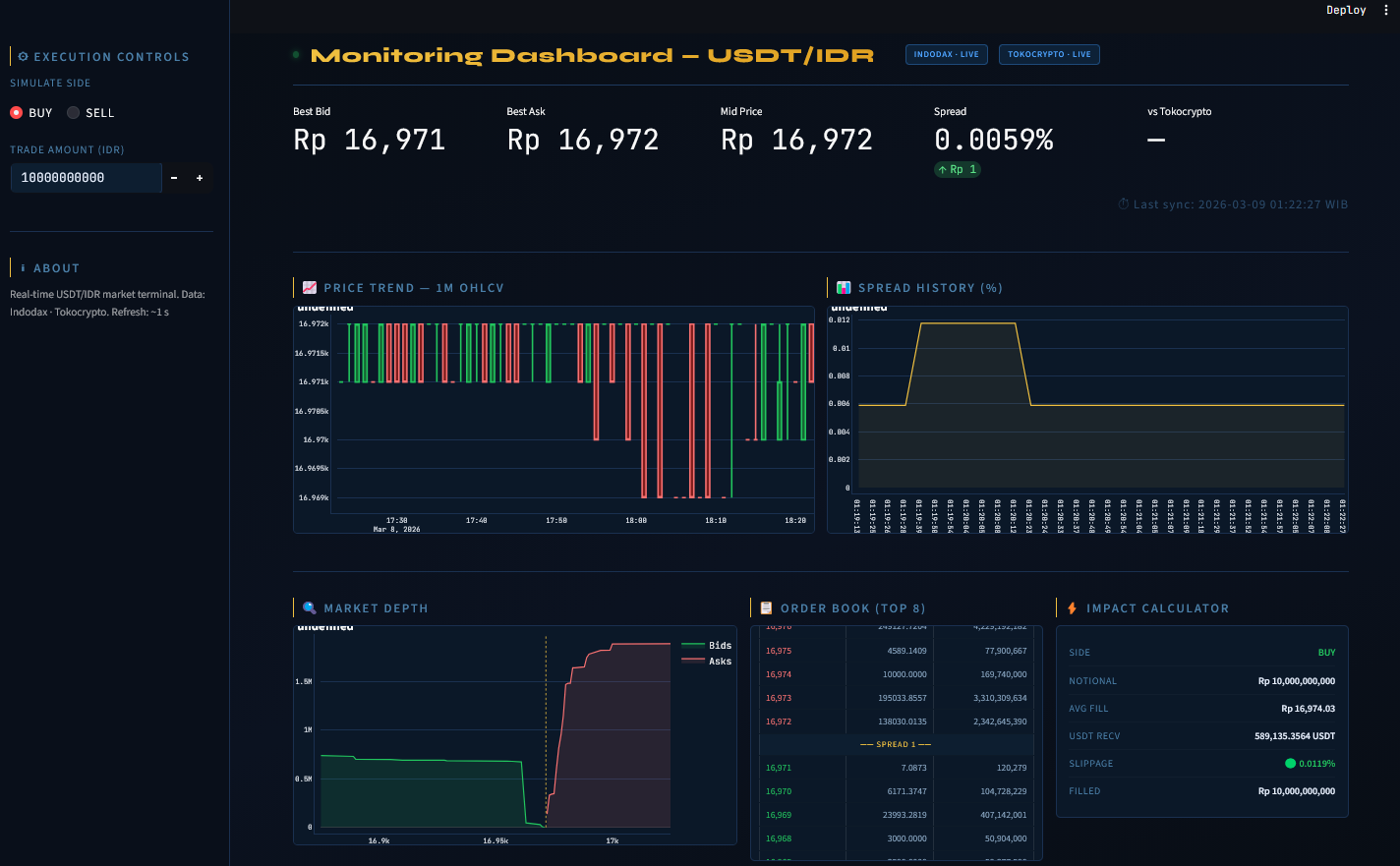

This dashboard is a high-frequency monitoring tool that transforms raw exchange data into three actionable operational insights:
- Slippage Prediction: Calculates the Volume Weighted Average Price (VWAP) for any specific trade size in real-time.
- Liquidity Visualization: Provides a cumulative view of “Market Walls” to identify where buyers and sellers are concentrated.
- Spread Health: Monitors the gap between Bid and Ask to identify periods of market stress or inefficiency.
3. Instruction Manual: How to Use the Dashboard

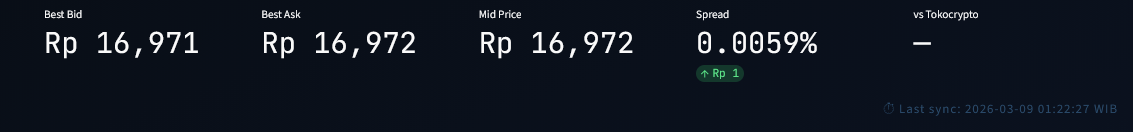

Step 1: Real-Time Market Health
The top row of the dashboard displays the Pulse of the Market:
- Best Bid/Ask: The current highest buy and lowest sell prices available on the exchange.
- Spread (%): A critical health metric. A widening spread indicates a volatile or illiquid market where trading becomes expensive.

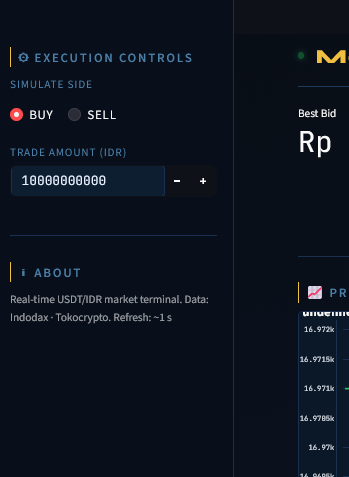

Step 2: Running an Execution Simulation
The Execution Simulation panel on the left allows you to act as an Ops Manager or Institutional Trader:
- Select Side: Choose Buy or Sell.
- Trade Amount: Input your target volume in IDR (e.g., 500,000,000).
- Analyze Impact: The dashboard instantly calculates the Execution VWAP and Est. Slippage.
- Operational Tip: If slippage exceeds 0.2%, an Ops Manager might choose to split the order into smaller “slices” or wait for a period of higher liquidity.

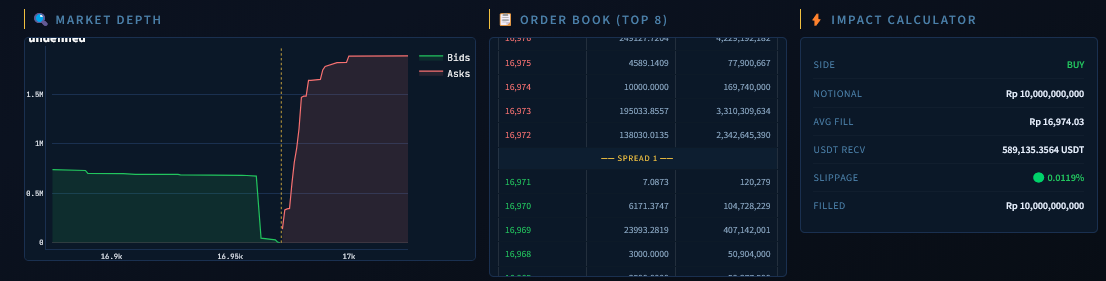

Step 3: Reading the Depth Chart
The Market Depth Chart (Green and Red areas) visualizes the future of price movement:
- The Green Area (Bids): Represents the “Floor.” A steep green mountain indicates strong buy support; the price is unlikely to drop quickly.
- The Red Area (Asks): Represents the “Ceiling.” A tall red mountain indicates heavy selling pressure.
- The Mid-Point: The narrow gap between these areas is where the spread exists.

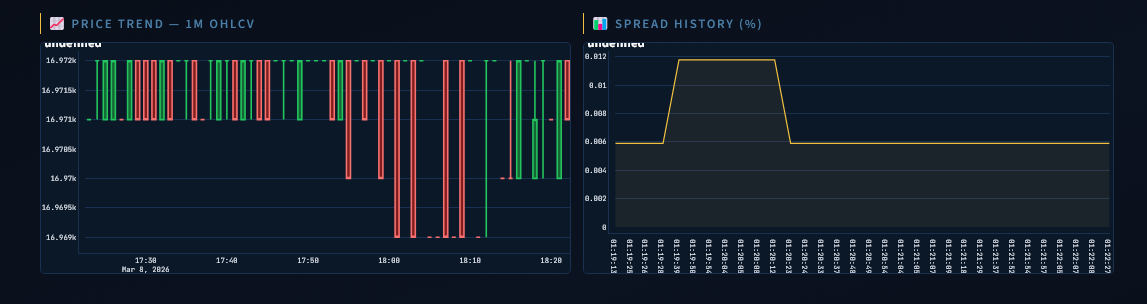

Step 4: Tracking Trends
The Price History and Spread History charts help identify correlation. For example, if the spread widens during a price drop, it indicates that liquidity is being pulled from the book, signaling a “Flash Crash” risk.
4. Technical Specifications & Architecture
Data Sourcing
- Engine: Powered by the CCXT library for robust API communication with Indodax/Tokocrypto.
- Update Frequency: The dashboard utilizes a 1Hz (1 second) refresh rate to ensure order book data reflects the current market heartbeat.
Mathematical Logic: Slippage Calculation
The dashboard iterates through the Limit Order Book (LOB) to find the true execution price based on volume:
\[VWAP = \frac{\sum (Price_{level} \times Quantity_{filled})}{\text{Total Quantity}}\] \[Slippage \% = \left| \frac{VWAP - BestPrice}{BestPrice} \right| \times 100\]Technical Stack
- Python 3.10+
- Streamlit: For high-performance, real-time UI/UX.
- Plotly: For interactive, financial-grade charting.
- Pandas: For real-time data frame manipulation and cumulative liquidity calculations.
5. How to Run Locally
- Clone the repository:
git clone https://github.com/handiko/USDT-IDR-Monitoring-Dashboard - Install dependencies:
pip install streamlit ccxt plotly pandas - From the python folder, launch the application:
streamlit run app.py
