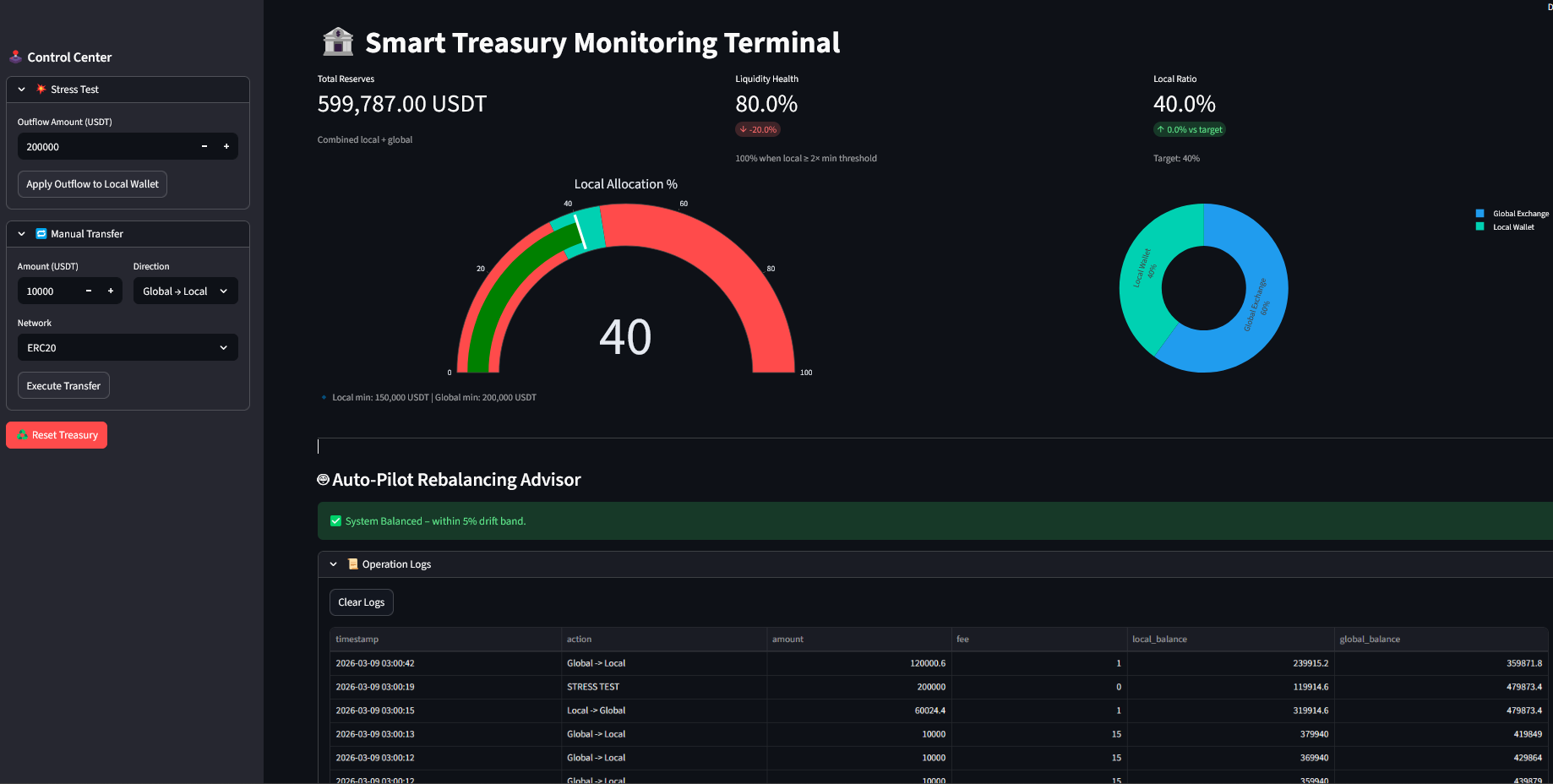

Treasury Monitoring Terminal: Smart Rebalancing Manual

Treasury monitoring terminal simulation app to demonstrate the treasury rebalancing process in a crypto exchange. A simplified example.

1. Project Background & Business Case

In the ecosystem of a crypto exchange, “Inventory Management” is a critical pillar of Business Operations. Capital is generally split between two venues:

• Local Hot Wallets: Used for immediate user withdrawals. High availability is required.
• Global Liquidity Pools: Used as a “backstop” for bulk inventory.

The Challenge: The “Liquidity Gap”

If a major market event triggers a “Bank Run” (mass withdrawals), the Local Wallet can be depleted in minutes. Conversely, keeping too much capital locally increases security risks and incurs opportunity costs.

The Solution: “Smart Rebalancing”

This terminal acts as a decision-support system that monitors these levels in real-time. It uses a Drift-Band Strategy to ensure the exchange stays solvent while minimizing transaction friction and network fees.

---

2. Operational Instruction Manual

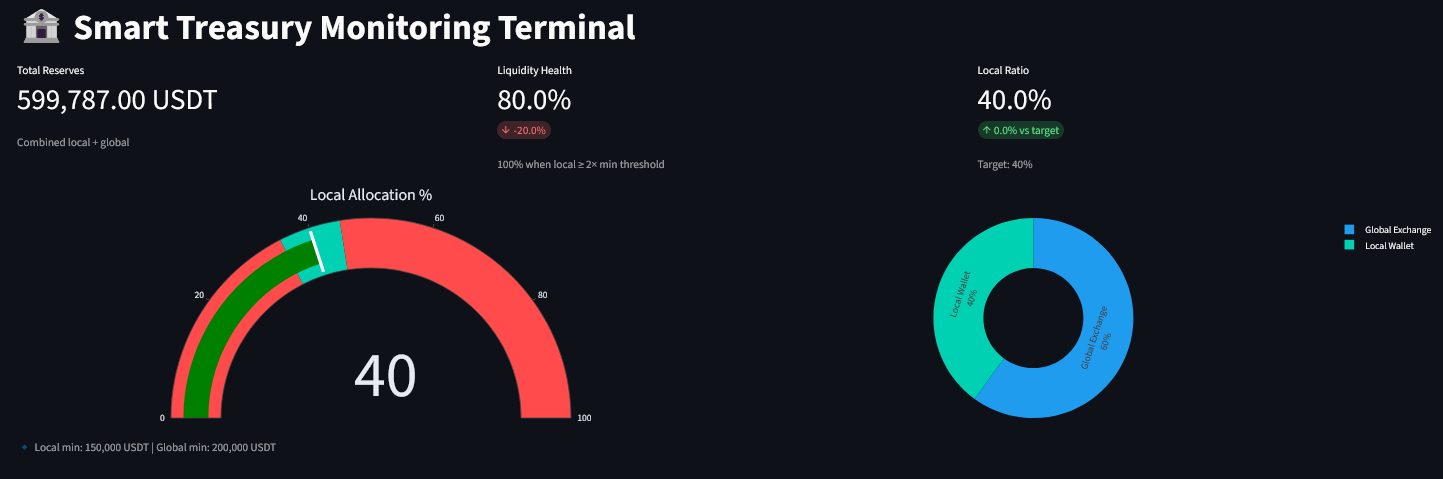

Section A: Monitoring the KPI Dashboard

Upon launching the terminal, observe the top metrics:

• Liquidity Health: This is your primary “Danger” gauge. It measures local USDT against its Minimum Safety Threshold.
  • 100% Health: Local balance is $\ge$ double the minimum threshold.
  • Red Zone: If health drops below 50%, a liquidity crunch is imminent.
• Local Ratio Gauge: Visualizes the current percentage of assets held locally vs. the 40% Target Ratio.

Section B: Using the Auto-Pilot Advisor

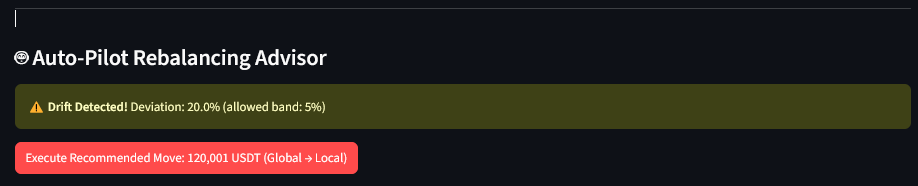

The 🤖 Auto-Pilot Rebalancing Advisor is designed for “Management by Exception.”

1. Drift Detection: The system allows for a 5% Drift Band. It will not bother the operator for small fluctuations.
2. Action Trigger: If the ratio drifts beyond 5% (e.g., local falls to 34% or rises to 46%), a warning appears.
3. Execution: Clicking the “Execute Recommended Move” button restores target parity instantly using the most cost-effective network (e.g., TRC20).

Section C: Executing Stress Tests

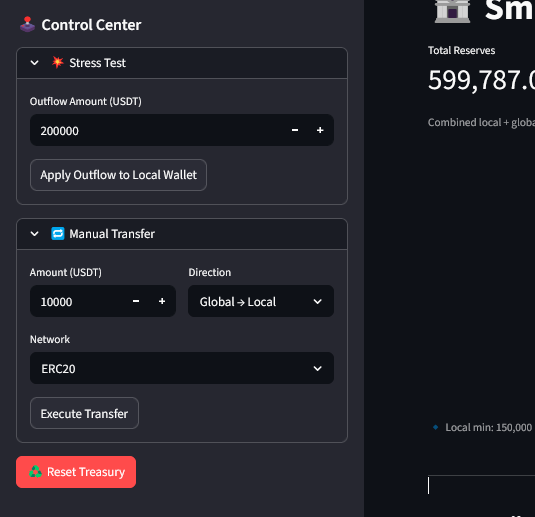

To prepare for “Black Swan” events, use the Stress Test module in the sidebar:

1. Enter a hypothetical Outflow Amount (e.g., 250,000 USDT).
2. Click Apply Outflow.
3. Observe how the system’s Health Score reacts and how the Auto-Pilot adjusts its rebalancing recommendation to save the local liquidity pool.

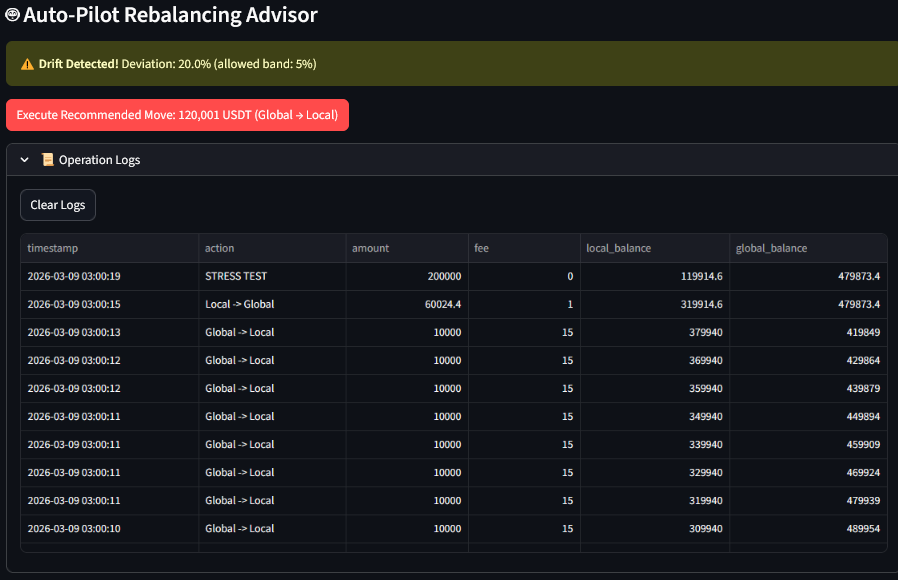

Section D: Auditing & Logs

Every internal movement is captured in the Operation Logs. This table provides a high-fidelity audit trail, including:

• Timestamp of the event.
• Action Type (Manual, Auto-Pilot, or Stress Test).
• Network Fee paid.
• Snapshot of balances in both venues after the move.

---

3. Technical Implementation & Logic

Rebalancing Formulas

The system calculates rebalancing needs based on the distance from the Target Parity:

\[Target\ Amount = Total\ Reserves \times 0.40\]

The Drift Condition is evaluated as:

\[\text{If } \lvert Target - Local\ \rvert > (Total \times 0.05) \rightarrow \text{Trigger Alert}\]

Tech Stack

• Frontend: Streamlit for real-time interactivity.
• State Management: st.session_state used to simulate a persistent ledger for balances and logs.
• Data Processing: Pandas for structured log auditing.
• Visualization: Plotly for professional-grade “Command & Control” indicators.

---

4. How to Run

1. Clone this repository.
2. Install requirements: pip install streamlit pandas plotly.
3. From the python folder, run the application: streamlit run treasury_app.py.

---
